User Interface

ByzzBench includes a user interface that allows to visualize and control the execution of the protocol.

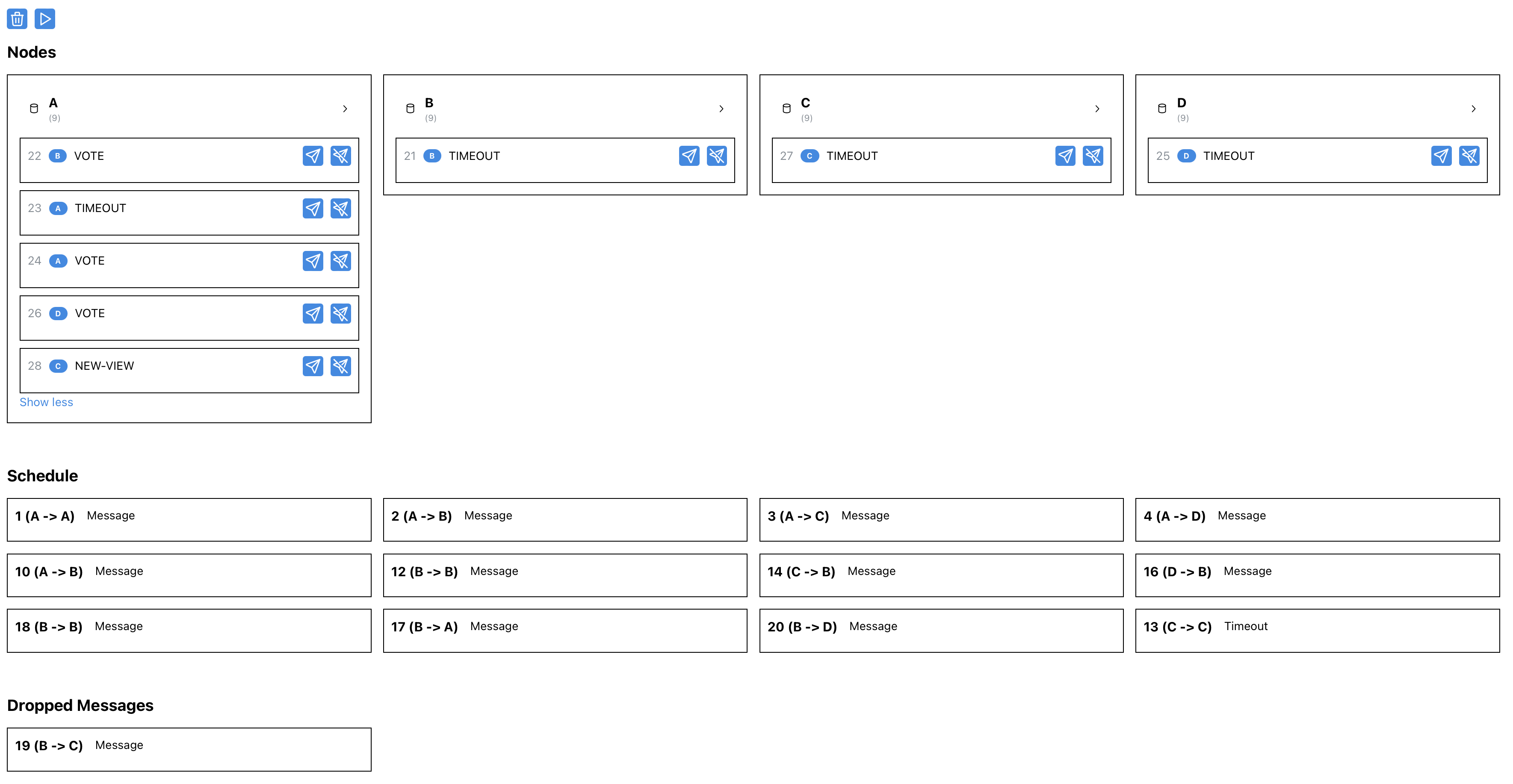

In the top section, under Nodes we can see the state of each Replica, as well as the list of messages currently waiting to be delivered in their mailbox.

Under Schedule, we can see the events in the order they were delivered to their respective recipients. Dropped Messages displays the set of events that failed to be delivered.

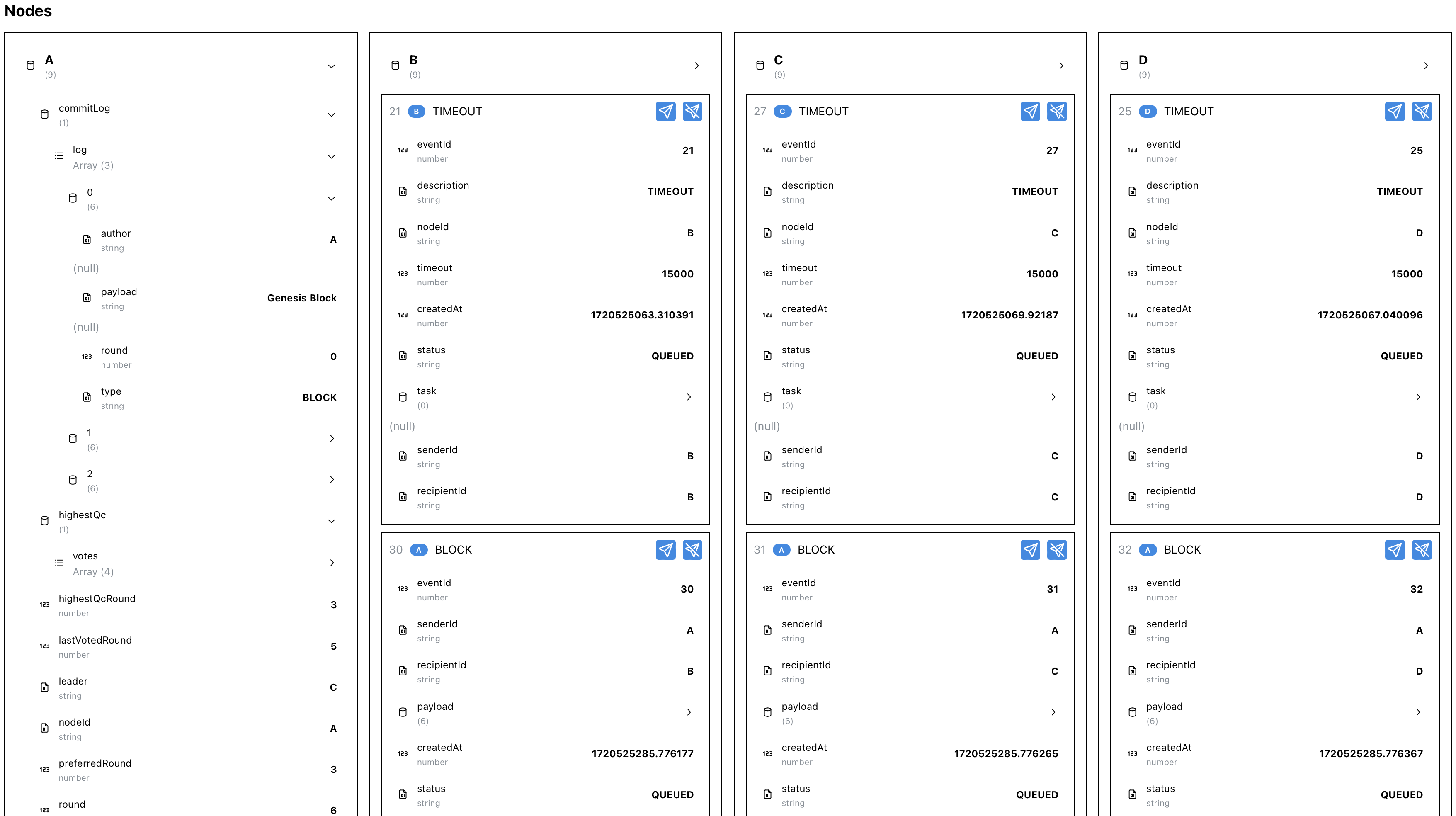

The UI allows to introspect the state of each node and message:

How serialization works

Serialization of Java classes is handled by the Spring Boot framework, using the Jackson library.

By default, Jackson serializes all fields of a class, unless they are annotated with @JsonIgnore.

It will also include the values returned by Getters (methods that start with get or is), unless they are also annotated with @JsonIgnore.
